8m x 7m
>
Single Storey 8070A
>
Garage Plan Ref 8070AHSRCB
Garage Plan Ref 8070AHSRCB
Garage Plan Ref 8070AHSRCB
8070AHSRCB
Add to cart
Description

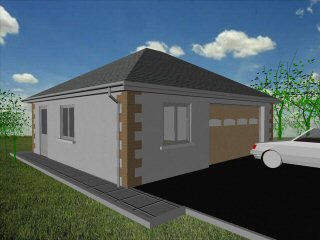

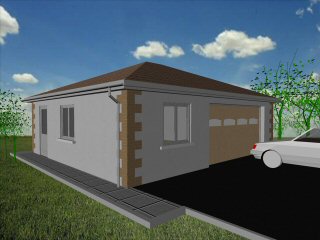

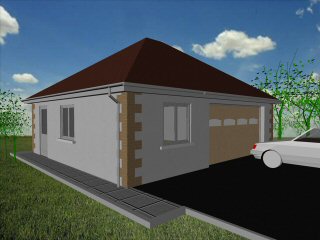

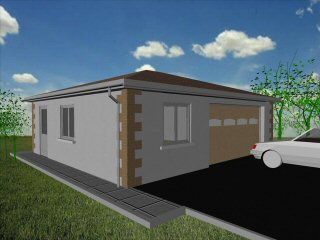

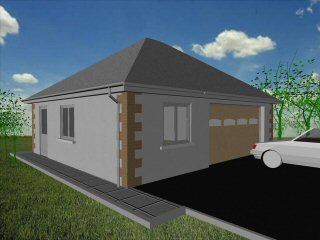

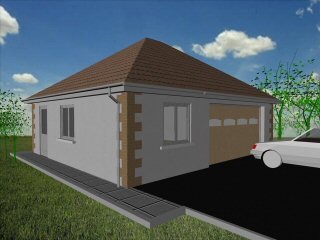

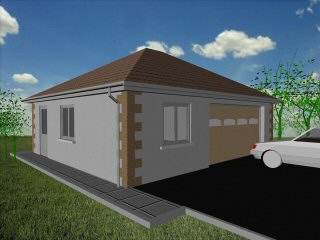

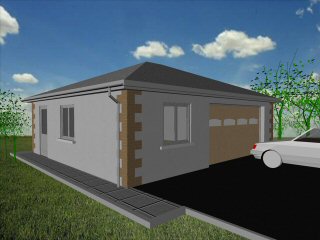

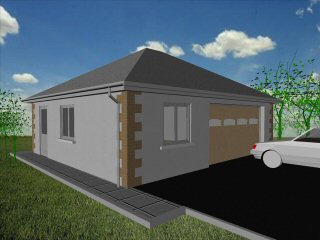

8m x 7m Garage Plan with a Hipped roof - Rendered walls and Brick Corner Stones
8.6m x 7.6m Externally
56m² Ground Floor Area
12" Cavity wall construction
Single side door and window
9' x 7' Up and Over Garage Door and front window
Truss rafter roof construction
17.5° roof pitch : Ridge Height = 3.9m
22.5° roof pitch : Ridge Height = 4.3m
30° roof pitch : Ridge Height = 4.9m
35° roof pitch : Ridge Height = 5.4m
!
