Garage Plan Ref 7080DBSBCR

7080DBSBCR
Add to cart
  • Description

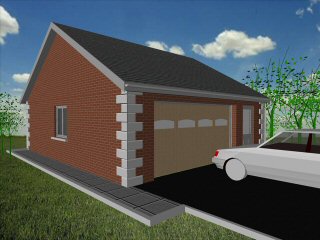

7m x 8m Garage Plan with a Pitch roof - Brick walls and Rendered Corner Stones Gable Sided Roof- style D


7.6m x 8.6m Externally
56m² Ground Floor Area
12" Cavity wall construction
Two side windows
9' x 7' Up and Over Garage Door and 3' Pedestrian Door
Truss rafter roof construction

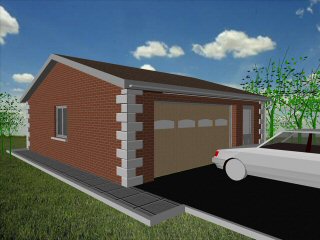

17.5° roof pitch : Ridge Height = 4.1m

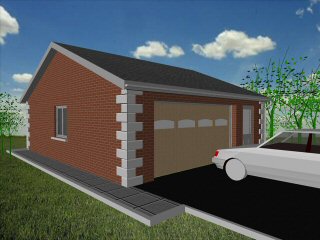

22.5° roof pitch : Ridge Height = 4.5m

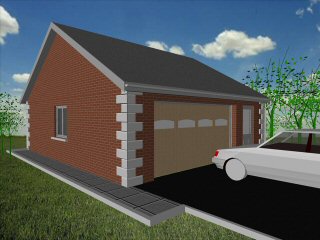

30° roof pitch : Ridge Height = 5.2m

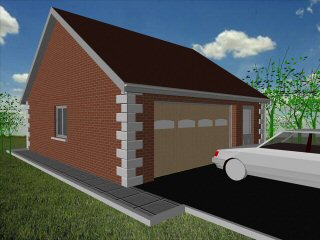

35° roof pitch : Ridge Height = 5.7m

This domestic one car workshop garage is ideal for parking the family car. Extra space is provided to allow a workshop area to be formed at the side of the car parking space. If a workshop is not required then the space can be used for storage or parking a motorbike. The pedestrian door is located at the front of the garage, this is useful if access around the outside of the garage is restricted. The 11 feet wide garage door allows easy access to the garage. The extra length to the garage allows the car to be parked at an angle so that all round access can be achieved. The cavity wall construction provides water proof construction.
