8m x 8m
>
Single Storey 8080A
>
Garage Plan Ref 8080ALSR
Garage Plan Ref 8080ALSR
Garage Plan Ref 8080ALSR
8080ALSRCN
Add to cart
Description
8m x 8m Garage Plan with a Pitch roof - Rendered walls Gable Fronted Roof
8.6m x 8.6m Externally
64m² Ground Floor Area
12" Cavity wall construction
Single side door and two side windows
9' x 7' Up and Over Garage Door and front window
Truss rafter roof construction

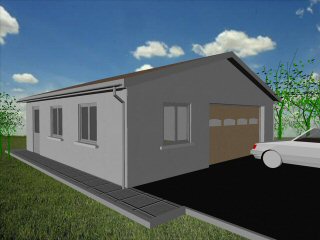

17.5° roof pitch : Ridge Height = 4.1m

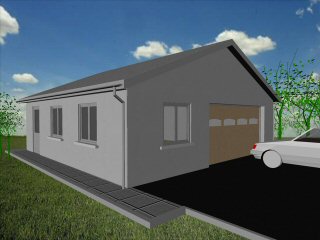

22.5° roof pitch : Ridge Height = 4.5m

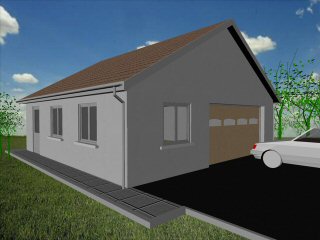

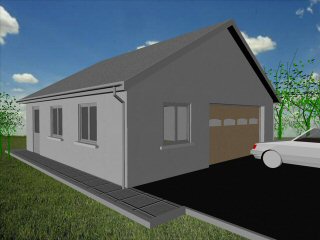

30° roof pitch : Ridge Height = 5.2m

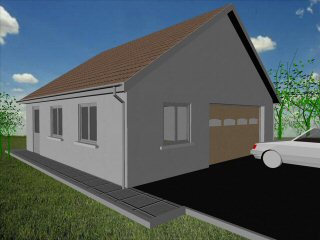

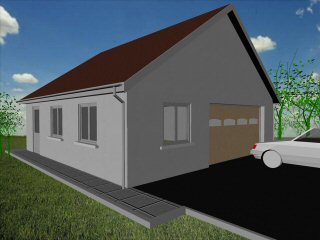

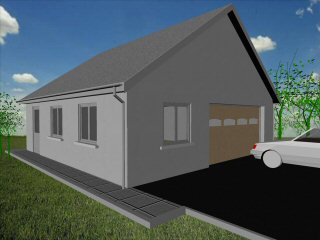

35° roof pitch : Ridge Height = 5.7m
!
