9m x 7m
>
Single Storey 9070F
>
Garage Plan Ref 9070FHSRCR
Garage Plan Ref 9070FHSRCR
Garage Plan Ref 9070FHSRCR
9070FHSRCR
Add to cart
Description

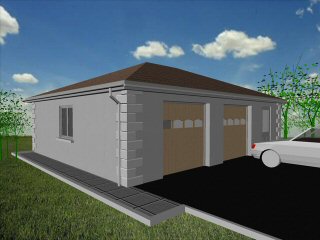

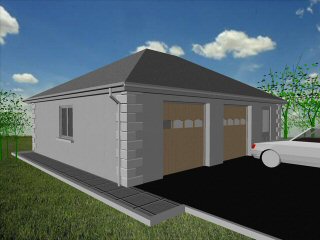

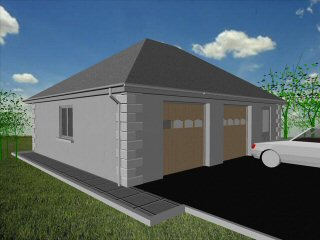

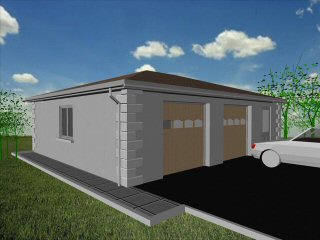

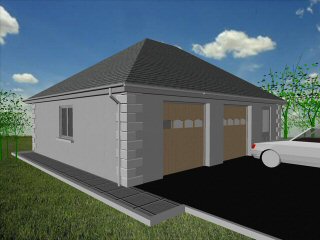

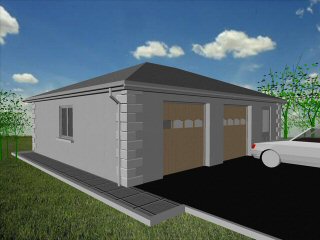

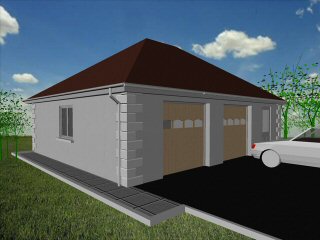

9m x 7m Garage Plan with a Hipped roof - Rendered walls and Rendered Corner Stones- style F
9.6m x 7.6m Externally
63m² Ground Floor Area
12" Cavity wall construction
Single side window
2No 7' x 7' Up and Over Garage Door and 3' Pedestrian Door
Truss rafter roof construction
17.5° roof pitch : Ridge Height = 3.9m
22.5° roof pitch : Ridge Height = 4.3m
30° roof pitch : Ridge Height = 4.9m
35° roof pitch : Ridge Height = 5.4m
!
