9m x 7m
>
Single Storey 9070B
>
Garage Plan Ref 9070BBSBCR
Garage Plan Ref 9070BBSBCR
Garage Plan Ref 9070BBSBCR
9070BBSBCR
Add to cart
Description

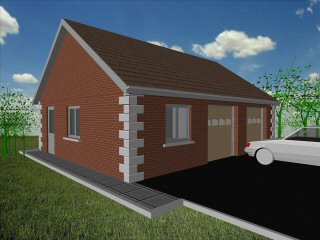

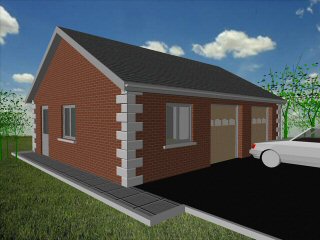

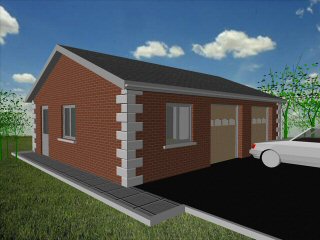

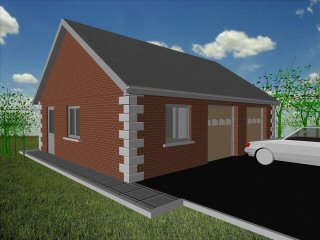

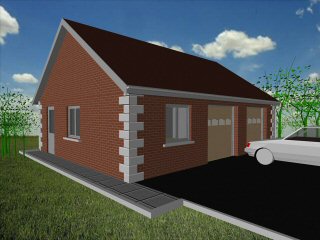

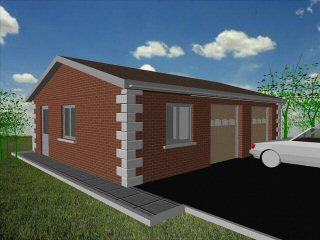

9m x 7m Garage Plan with a Pitch roof - Brick walls and Rendered Corner Stones Gable Sided Roof- style B
9.6m x 7.6m Externally
63m² Ground Floor Area
12" Cavity wall construction
Single side door and window
2No 6'-6" x 6'-6" Up and Over Garage Doors and front window
Truss rafter roof construction
17.5° roof pitch : Ridge Height = 3.9m
22.5° roof pitch : Ridge Height = 4.3m
30° roof pitch : Ridge Height = 4.9m
35° roof pitch : Ridge Height = 5.4m
!
