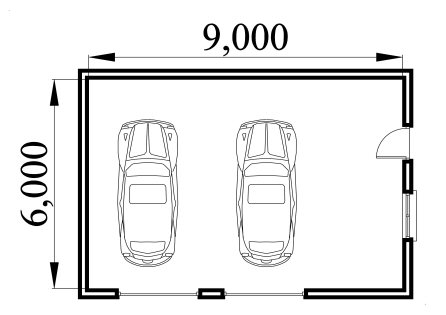

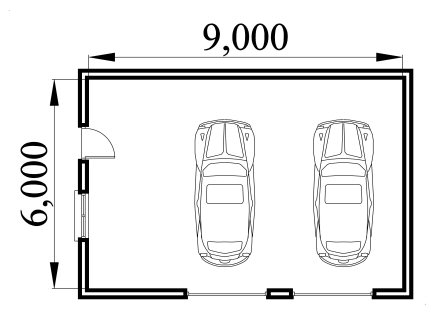

9m x 6m
>
Single Storey 9060D
>
Garage Plan Ref 9060DHSR
Garage Plan Ref 9060DHSR
Garage Plan Ref 9060DHSR
9060DHSRCN
Add to cart
Description

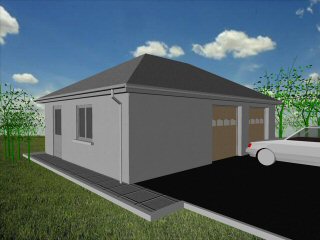

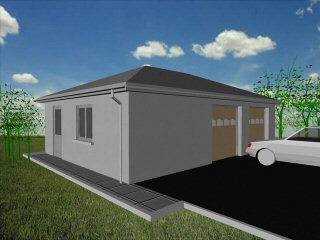

9m x 6m Garage Plan with a Hipped roof - Rendered walls - style D
9.6m x 6.6m Externally
54m² Ground Floor Area
12" Cavity wall construction
Single side door and window
2No 6' 6" x 7' Up and Over Garage Doors
Truss rafter roof construction

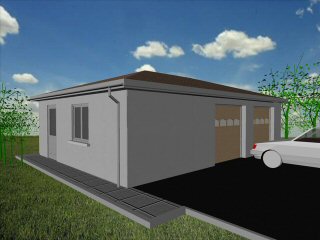

17.5° roof pitch : Ridge Height = 3.8m

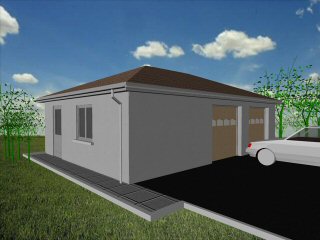

22.5° roof pitch : Ridge Height = 4.1m

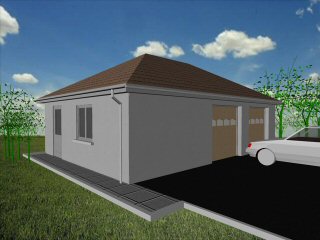

30° roof pitch : Ridge Height = 4.6m

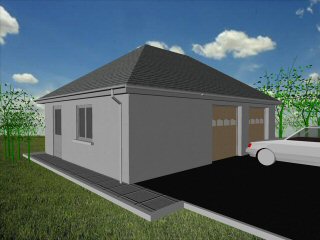

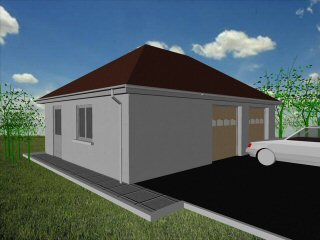

35° roof pitch : Ridge Height = 5m
!
