Garage Plan Ref 9050FHSR

9050FHSRCN
Add to cart
  • Description

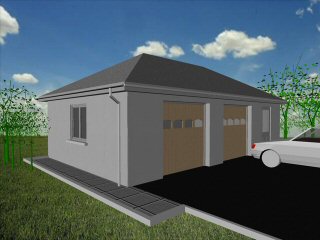

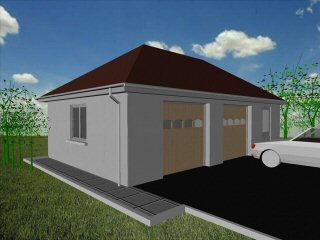

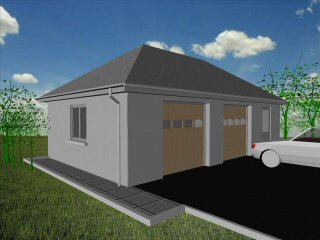

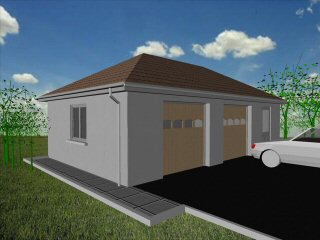

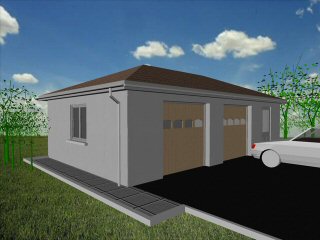

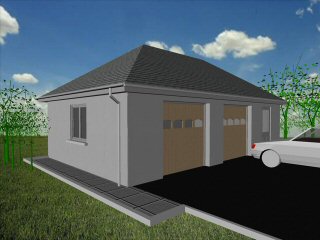

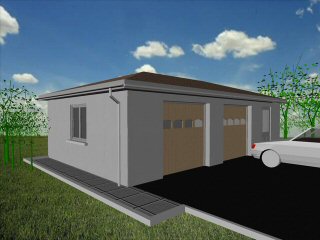

9m x 5m Garage Plan with a Hipped roof - Rendered walls - style F


9.6m x 5.6m Externally
45m² Ground Floor Area
12" Cavity wall construction
Single side window
2No 7' x 7' Up and Over Garage Door and 3' Pedestrian Door
Truss rafter roof construction


17.5° roof pitch : Ridge Height = 3.6m
22.5° roof pitch : Ridge Height = 3.9m
30° roof pitch : Ridge Height = 4.3m
35° roof pitch : Ridge Height = 4.7m

WARNING!!! This is the smallest length of garage available. It will be adequate for most saloon type cars but will NOT be long enough for the larger type cars. If you have the building space available please select the 6m long garage. Check the length of your car here. car sizes
