Garage Plan Ref 8070DLSR
8070DLSRCN
Roof Pitch and Finish *
Garage 8070D
Garage to be Mirrored *
Plan Ref 8070D
Drawing Package *
Add to cart
  • Description

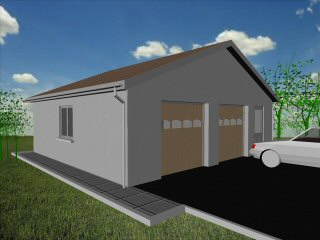

8m x 7m Garage Plan with a Pitch roof - Rendered walls Gable Fronted Roof- style D


8.6m x 7.6m Externally
56m² Ground Floor Area
12" Cavity wall construction
Single side window
2No 7' x 7' Up and Over Garage Door and 3' Pedestrian Door
Truss rafter roof construction

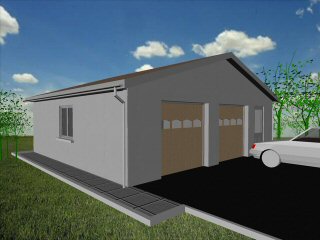

17.5° roof pitch : Ridge Height = 4.1m

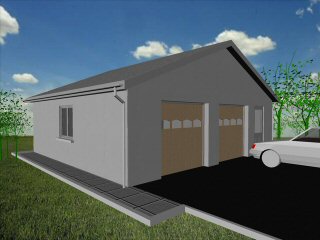

22.5° roof pitch : Ridge Height = 4.5m

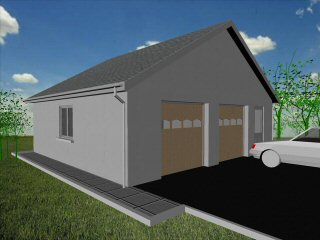

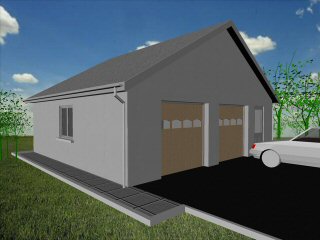

30° roof pitch : Ridge Height = 5.2m

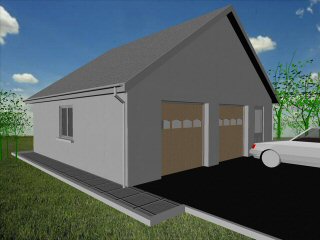

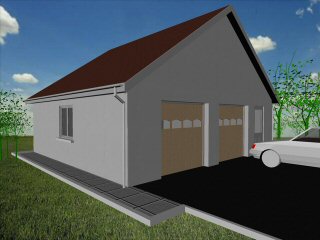

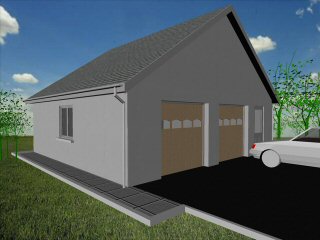

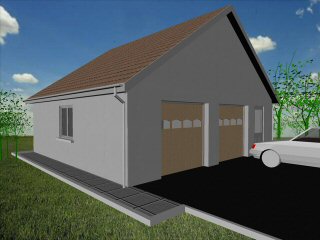

35° roof pitch : Ridge Height = 5.7m
