8m x 7m
>
Single Storey 8070D
>
Garage Plan Ref 8070DHSBCB
Garage Plan Ref 8070DHSBCB
Garage Plan Ref 8070DHSBCB
8070DHSBCB
Add to cart
Description
8m x 7m Garage Plan with a Hipped roof - Brick walls and Brick Corner Stones- style D
8.6m x 7.6m Externally
56m² Ground Floor Area
12" Cavity wall construction
Single side window
2No 7' x 7' Up and Over Garage Door and 3' Pedestrian Door
Truss rafter roof construction

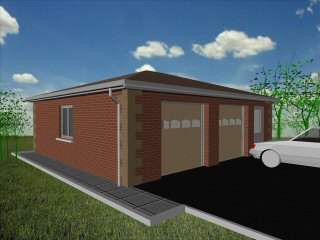

17.5° roof pitch : Ridge Height = 3.9m

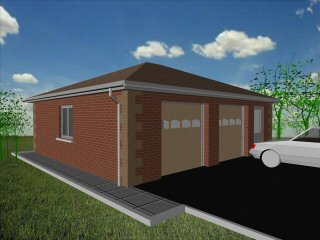

22.5° roof pitch : Ridge Height = 4.3m

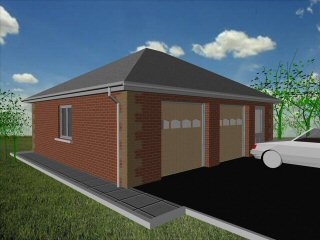

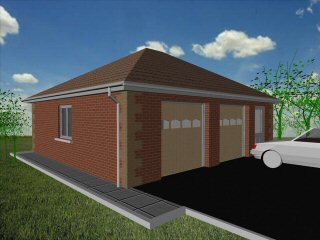

30° roof pitch : Ridge Height = 4.9m

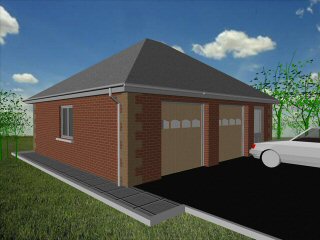

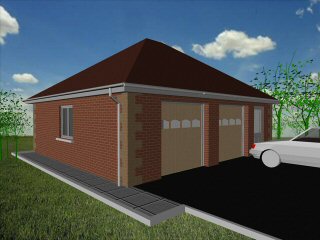

35° roof pitch : Ridge Height = 5.4m
!
