8m x 7m
>
Single Storey 8070C
>
Garage Plan Ref 8070CHSR
Garage Plan Ref 8070CHSR
Garage Plan Ref 8070CHSR
8070CHSRCN
Add to cart
Description

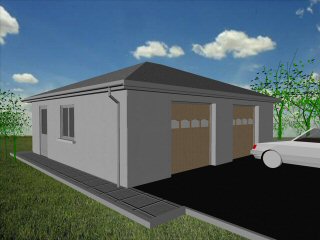

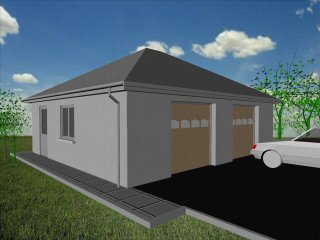

8m x 7m Garage Plan with a Hipped roof - Rendered walls - style C
8.6m x 7.6m Externally
56m² Ground Floor Area
12" Cavity wall construction
Single side door and window
2No 6' 6" x 7' Up and Over Garage Doors
Truss rafter roof construction

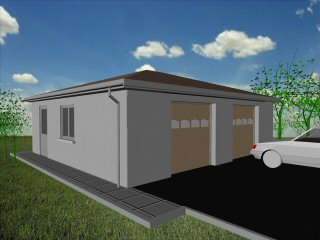

17.5° roof pitch : Ridge Height = 3.9m

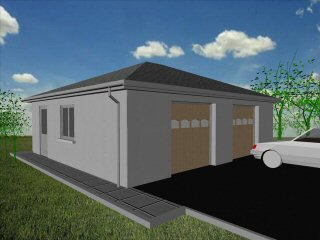

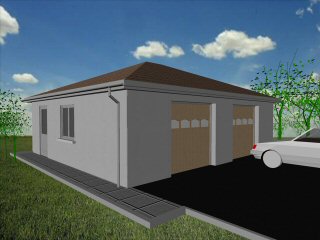

22.5° roof pitch : Ridge Height = 4.3m

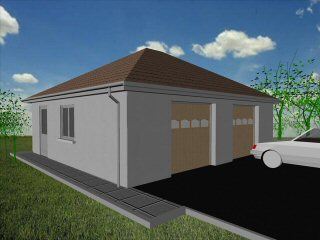

30° roof pitch : Ridge Height = 4.9m

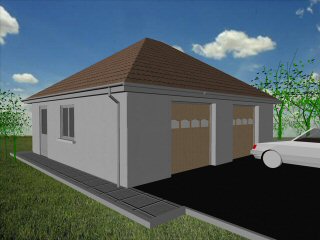

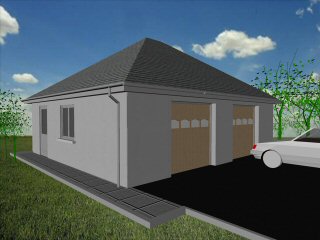

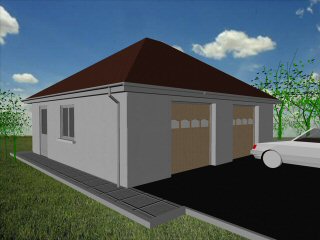

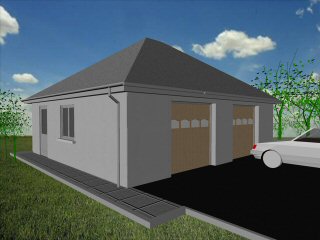

35° roof pitch : Ridge Height = 5.4m
!
