8m x 7m
>
Single Storey 8070A
>
Garage Plan Ref 8070ABSR
Garage Plan Ref 8070ABSR
Garage Plan Ref 8070ABSR
8070ABSRCN
Add to cart
Description
8m x 7m Garage Plan with a Pitch roof - Rendered walls Gable Sided Roof
8.6m x 7.6m Externally
56m² Ground Floor Area
12" Cavity wall construction
Single side door and window
9' x 7' Up and Over Garage Door and front window
Truss rafter roof construction

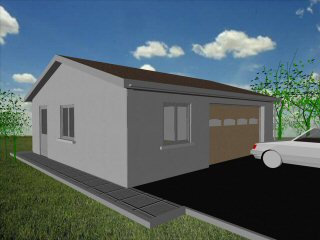

17.5° roof pitch : Ridge Height = 3.9m

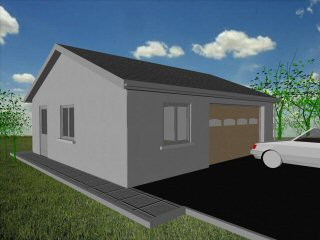

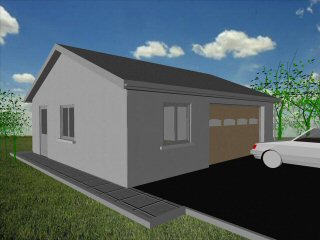

22.5° roof pitch : Ridge Height = 4.3m

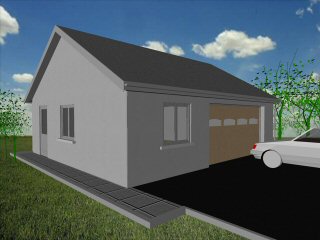

30° roof pitch : Ridge Height = 4.9m

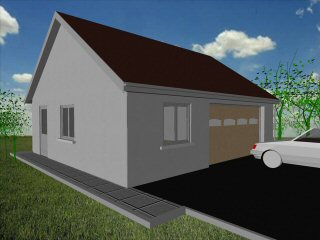

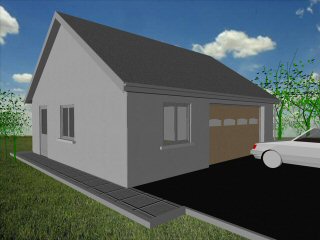

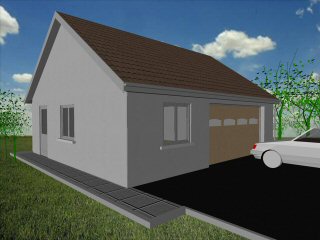

35° roof pitch : Ridge Height = 5.4m
!
