Garage Plan Ref 8060DHSBCB
8060DHSBCB
Roof Pitch and Finish *
Garage 8060D
Garage to be Mirrored *
Plan Ref 8060D
Drawing Package *
Add to cart
  • Description

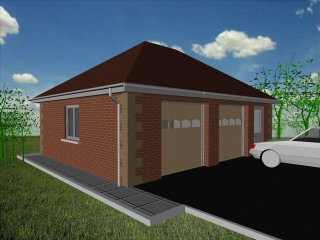

8m x 6m Garage Plan with a Hipped roof - Brick walls and Brick Corner Stones- style D


8.6m x 6.6m Externally
48m² Ground Floor Area
12" Cavity wall construction
Single side window
2No 7' x 7' Up and Over Garage Door and 3' Pedestrian Door
Truss rafter roof construction

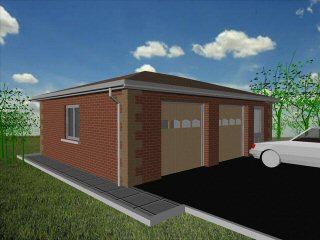

17.5° roof pitch : Ridge Height = 3.8m

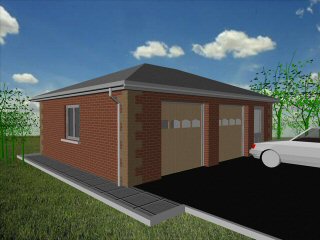

22.5° roof pitch : Ridge Height = 4.1m

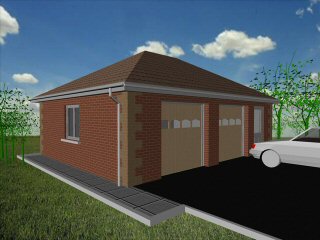

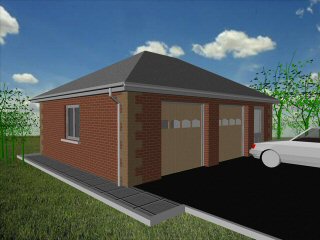

30° roof pitch : Ridge Height = 4.6m

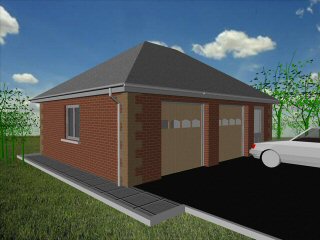

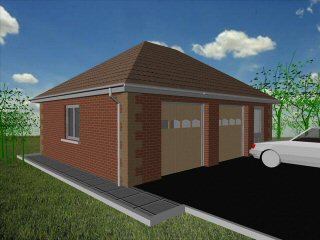

35° roof pitch : Ridge Height = 5m
