Garage Plan Ref 7090BHSRCR

7090BHSRCR
Add to cart
  • Description

7m x 9m Garage Plan with a Hipped roof - Rendered walls and Rendered Corner Stones- style B


7.6m x 9.6m Externally
63m² Ground Floor Area
12" Cavity wall construction
Single side door and two side windows
2No 6' 6" x 7' Up and Over Garage Doors
Truss rafter roof construction

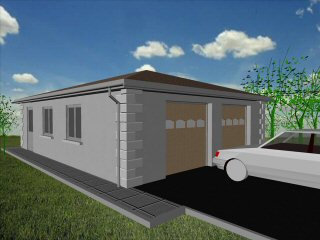

17.5° roof pitch : Ridge Height = 3.9m

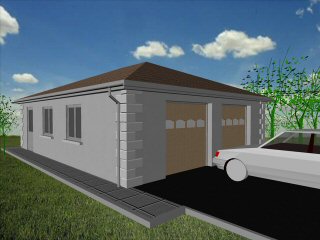

22.5° roof pitch : Ridge Height = 4.3m

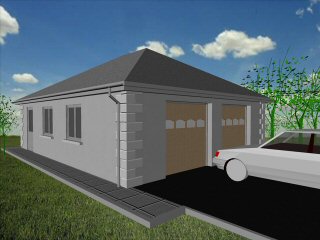

30° roof pitch : Ridge Height = 4.9m

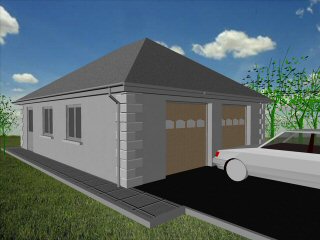

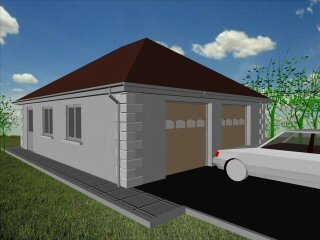

35° roof pitch : Ridge Height = 5.4m

This domestic two car garage is ideal for parking the family cars. The width of the garage will accommodate two cars side by side. The extra length provided allows for a workbench, a storage area or workshop at the rear of the garage. The two 7 feet wide garage doors allow individual access to the garage for each car. The cavity wall construction provides water proof construction.
