Garage Plan Ref 7050CHSBCR

7050CHSBCR
Add to cart
  • Description

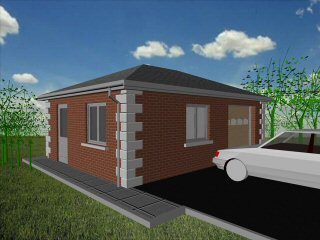

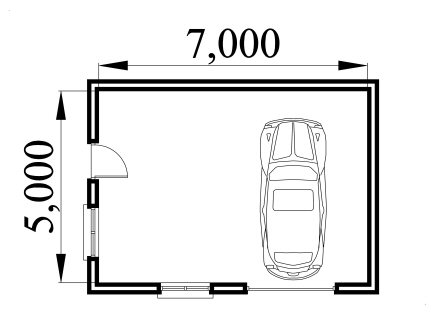

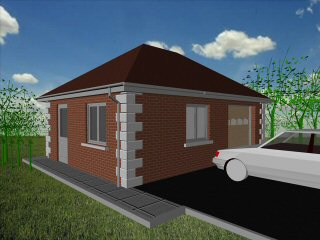

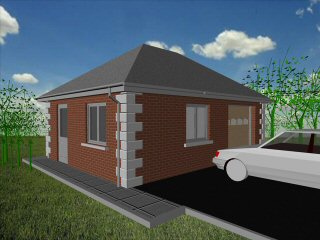

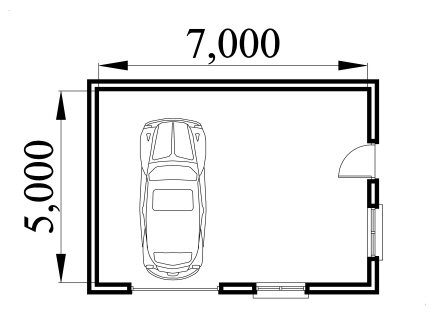

7m x 5m Garage Plan with a Hipped roof - Brick walls and Rendered Corner Stones- style C


7.6m x 5.6m Externally
35m² Ground Floor Area
12" Cavity wall construction
Single side door and window
7' x 7' Up and Over Garage Door and front window
Truss rafter roof construction

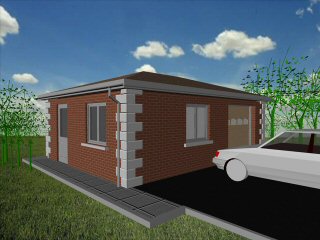

17.5° roof pitch : Ridge Height = 3.6m
22.5° roof pitch : Ridge Height = 3.9m

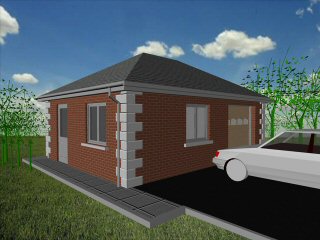

30° roof pitch : Ridge Height = 4.3m

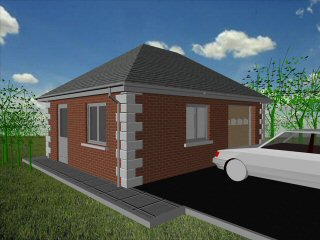

35° roof pitch : Ridge Height = 4.7m

This domestic two car workshop garage is ideal for parking the family car. Extra space is provided to allow a workshop area to be formed at the side of the car parking space. If a workshop is not required then the space can be used for storage or parking a motorbike. The additional window on the front elevation is supplied to provide extra natural light into the garage. The 7 feet wide garage door allows easy access to the garage. The cavity wall construction provides water proof construction.

#ff0000>WARNING!!! This is the smallest length of garage available. It will be adequate for most saloon type cars but will NOT be long enough for the larger type cars. If you have the building space available please select the 6m long garage. Check the length of your car here. car sizes
