Garage Plan Ref 7050BBSBCB

7050BBSBCB
Add to cart
  • Description

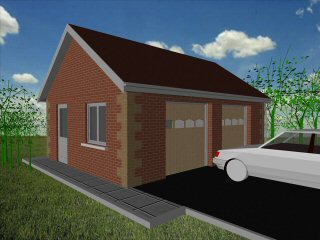

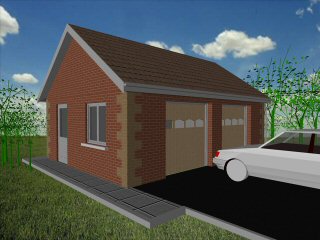

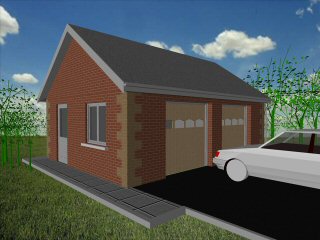

7m x 5m Garage Plan with a Pitch roof - Brick walls and Brick Corner Stones Gable Sided Roof- style B


7.6m x 5.6m Externally
35m² Ground Floor Area
12" Cavity wall construction
Single side door and window
2No 6' 6" x 7' Up and Over Garage Doors
Truss rafter roof construction

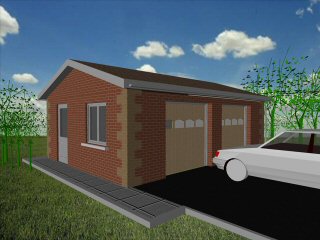

17.5° roof pitch : Ridge Height = 3.6m

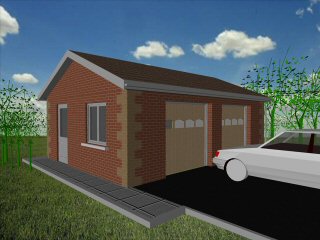

22.5° roof pitch : Ridge Height = 3.9m

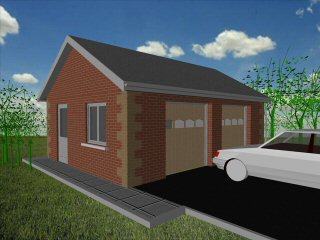

30° roof pitch : Ridge Height = 4.3m
35° roof pitch : Ridge Height = 4.7m

This domestic two car garage is ideal for parking the family cars. The width of the garage will accommodate two cars side by side. The two 7 feet wide garage doors allow individual access to the garage for each car. The cavity wall construction provides water proof construction.

WARNING!!! This is the smallest length of garage available. It will be adequate for most saloon type cars but will NOT be long enough for the larger type cars. If you have the building space available please select the 6m long garage. Check the length of your car here. car sizes
