Garage Design 6090BHSB

6090bHSBCN
Add to cart
  • Description
  • More

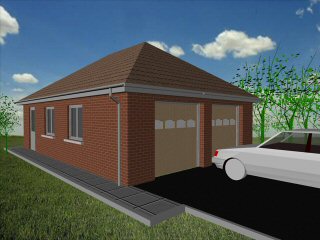

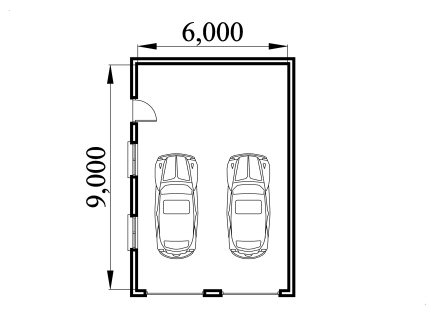

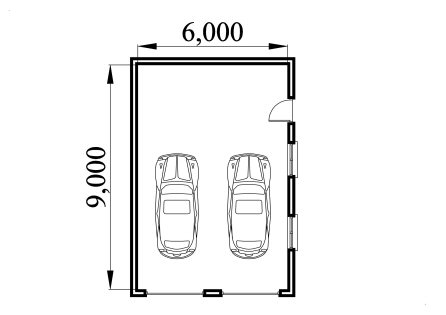

6m x 9m Garage Design with a Hipped roof - Brick walls




6.6m x 9.6m Externally
54m² Ground Floor Area
12" Cavity wall construction
Single side door and two side windows
2No 7' x 7' Up and Over Garage Doors
Truss rafter roof construction

17.5º roof pitch : Eaves Height = 2.4m & Ridge Height = 3.8m

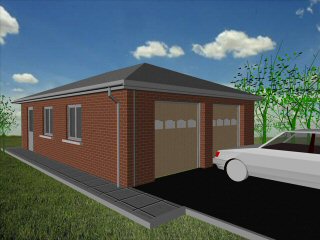

22.5º roof pitch : Eaves Height = 2.4m & Ridge Height = 4.1m

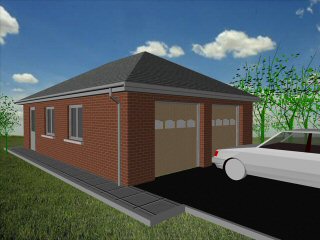

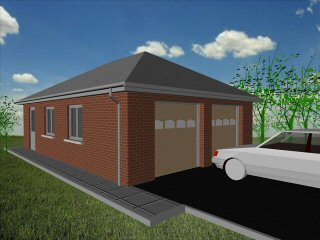

30º roof pitch : Eaves Height = 2.35m & Ridge Height = 4.6m

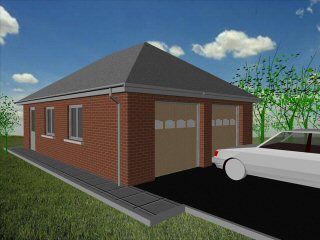

35º roof pitch : Eaves Height = 2.4m & Ridge Height = 5m

This domestic three car garage is ideal for parking the family cars. The width of the garage will accommodate two cars side by side. The extra length provided allows for a workbench or storage area at the rear of the garage. The two 7 feet wide garage doors allow individual access to the garage for each car. The cavity wall construction provides water proof construction.
