Garage Plan Ref 6070ALLRCR

6070ALLRCR
Add to cart
  • Description

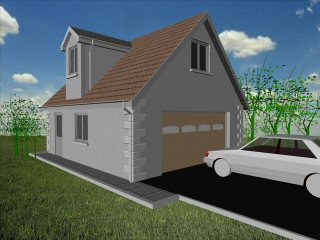

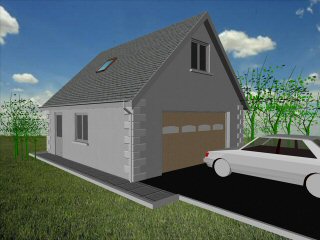

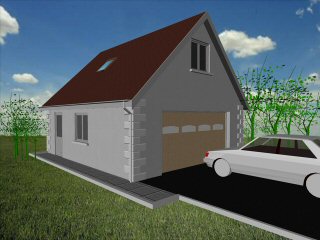

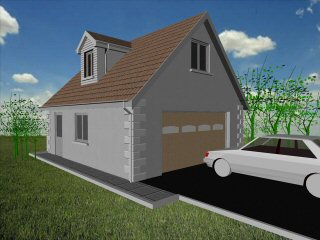

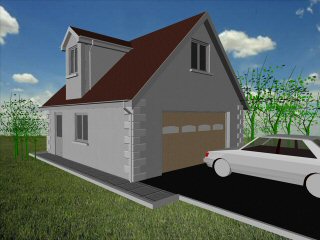

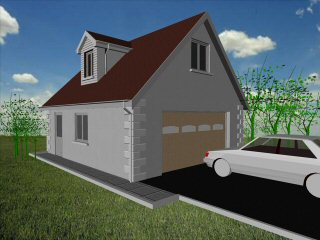

6m x 7m Loft Garage Plan with a 45 Degree Pitch roof - Rendered walls and Rendered Corner Stones Gable Fronted Roof


Ridge Height 6m

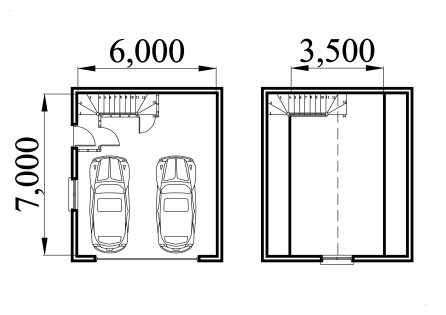

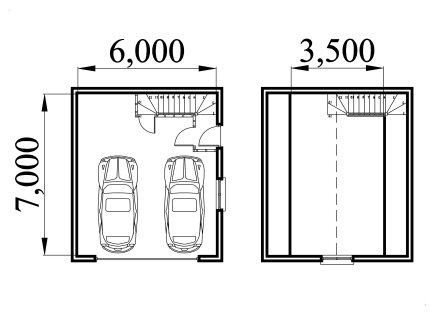

6.6m x 7.6m Externally
42m² Ground Floor Area
First Floor Storage Loft 3.5m x 7m = 24.5m²
12" Cavity wall construction
Single side door and window
9' x 7' Up and Over Garage Door
Room in the Roof Truss Rafters


This domestic double car garage is ideal for parking the family cars. With a wider interior than the standard double garage more room is available to open the car doors or moving around the car. The garage is wide enough to allow the DIY handyman to work around the car. The extra length allows a workbench to be placed at the rear of the garage. The 9 feet wide garage door allows easy access to the garage. The cavity wall construction provides water proof construction. Access to the storage loft is provided by a full staircase. The staircase is protected by a fire proof lobby. The loft storage space can be fitted with Velux windows or dormer windows for extra light.

!
