Garage Design 6060BHSBCR

6060bHSBCR
Add to cart
  • Description
  • More

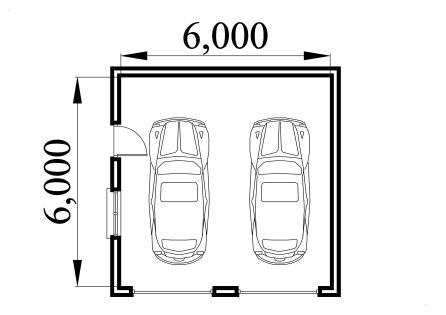

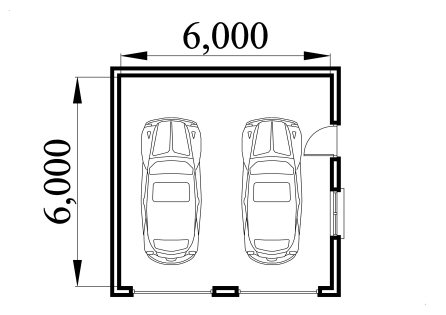

6m x 6m Garage Design with a Hipped roof - Brick walls and Rendered Corner Stones




6.6m x 6.6m Externally
36m² Ground Floor Area
12" Cavity wall construction
Single side door and window
2No 7' x 7' Up and Over Garage Doors
Truss rafter roof construction

17.5º roof pitch : Eaves Height = 2.4m & Ridge Height = 3.8m
22.5º roof pitch : Eaves Height = 2.4m & Ridge Height = 4.1m
30º roof pitch : Eaves Height = 2.35m & Ridge Height = 4.6m
35º roof pitch : Eaves Height = 2.4m & Ridge Height = 5m

This domestic double car garage is ideal for parking the family cars. The width of the garage will accommodate two cars side by side. The extra length provided allows for a workbench or storage area at the rear of the garage. The two 7 feet wide garage doors allow individual access to the garage for each car. The cavity wall construction provides water proof construction.
