Garage Plan Ref 6050DLSRCB

6050DLSRCB
Add to cart
  • Description

6m x 5m Garage Plan with a Pitch roof - Rendered walls and Brick Corner Stones Gable Fronted Roof- style D


6.6m x 5.6m Externally
30m² Ground Floor Area
12" Cavity wall construction
Single side window
7' x 7' Up and Over Garage Door and 3' Pedestrian Door
Truss rafter roof construction

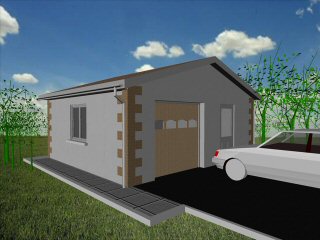

17.5° roof pitch : Ridge Height = 3.8m

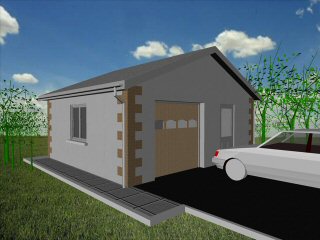

22.5° roof pitch : Ridge Height = 4.1m

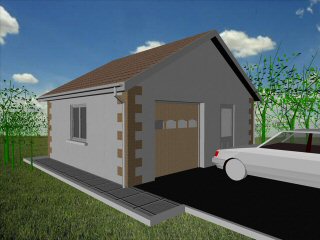

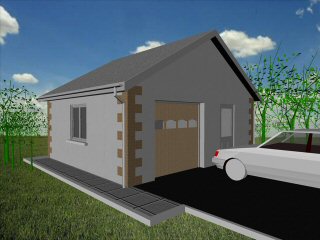

30° roof pitch : Ridge Height = 4.6m

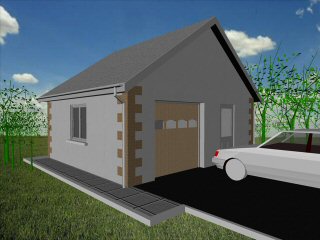

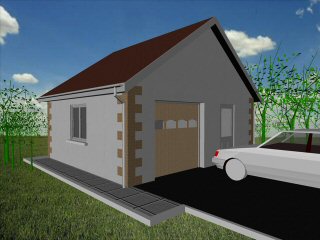

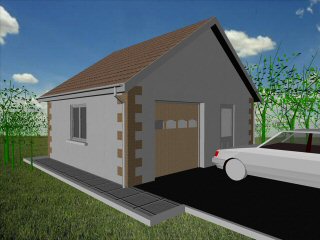

35° roof pitch : Ridge Height = 5m

This domestic single car workshop garage is ideal for parking the family car. Extra space is provided to allow a workshop area to be formed at the side of the car parking space. If a workshop is not required then the space can be used for storage or parking a motorbike. The pedestrian door is located at the front of the garage, this is useful if access around the outside of the garage is restricted. The 7 feet wide garage door allows easy access to the garage. The cavity wall construction provides water proof construction.

WARNING!!! This is the smallest length of garage available. It will be adequate for most saloon type cars but will NOT be long enough for the larger type cars. If you have the building space available please select the 6m long garage. Check the length of your car here. car sizes
