Garage Design 5090AHSBCB

Slide show
  • Description
  • More Details

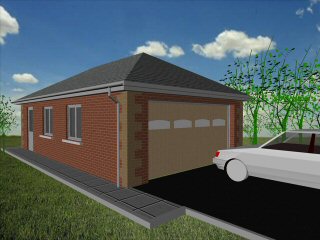

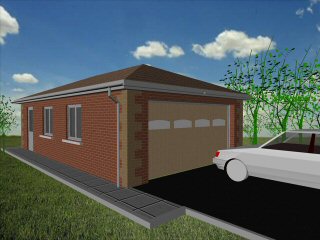

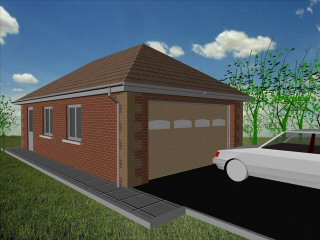

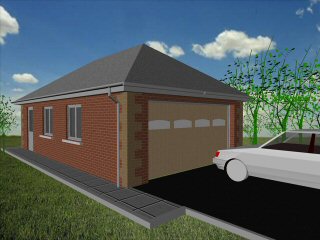

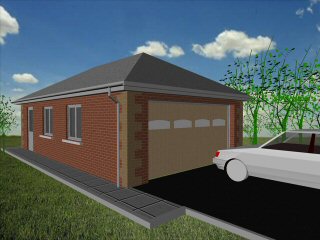

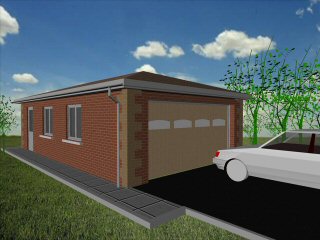

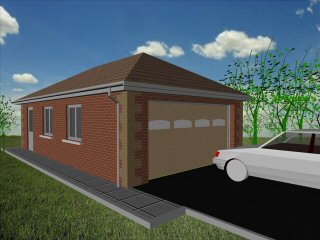

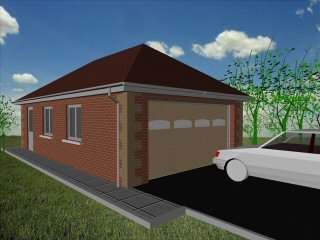

5m x 9m Garage Design with a Hipped roof - Brick walls and Brick Corner Stones




5.6m x 9.6m Externally
45m² Ground Floor Area
12" Cavity wall construction
Single side door and two side windows
12' x 7' Up and Over Garage Door
Truss rafter roof construction

17.5º roof pitch : Eaves Height = 2.4m & Ridge Height = 3.6m
22.5º roof pitch : Eaves Height = 2.4m & Ridge Height = 3.9m
30º roof pitch : Eaves Height = 2.4m & Ridge Height = 4.3m
35º roof pitch : Eaves Height = 2.35m & Ridge Height = 4.7m

This domestic double car garage is ideal for parking the family cars. This is the smallest width double garage available. The width of the garage will accommodate two cars side by side. The extra length allows for a workshop and storage area at the rear of the garage. The cars can be arranged to allow working around the cars. The garage can also accommodate four small cars. The 12 feet wide garage door allows easy access to the garage. The cavity wall construction provides water proof construction.
