Garage Plan Ref 5080AHSR

5080AHSRCN
Add to cart
  • Description

5m x 8m Garage Plan with a Hipped roof - Rendered walls


5.6m x 8.6m Externally
40m² Ground Floor Area
12" Cavity wall construction
Single side door and two side windows
9' x 7' Up and Over Garage Door
Truss rafter roof construction

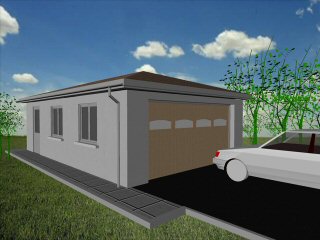

17.5° roof pitch : Ridge Height = 3.6m

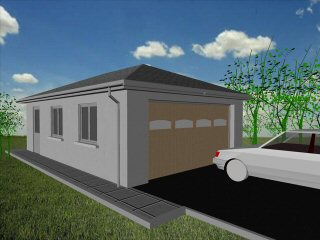

22.5° roof pitch : Ridge Height = 3.9m

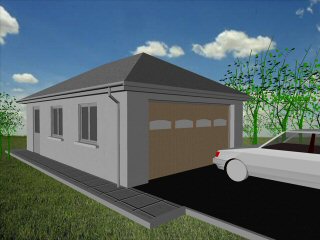

30° roof pitch : Ridge Height = 4.3m

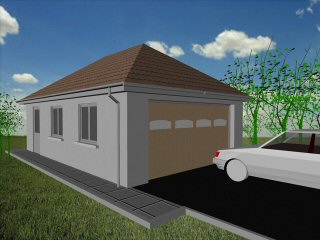

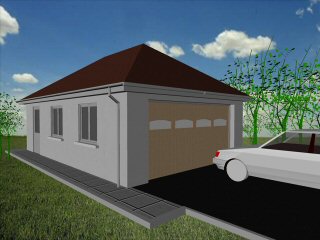

35° roof pitch : Ridge Height = 4.7m

This domestic double car garage is ideal for parking the family cars. This is the smallest width double garage available. The width of the garage will accommodate two cars side by side. The extra length allows for a workshop and storage area at the rear of the garage. The 9 feet wide garage door allows easy access to the garage. The cavity wall construction provides water proof construction.
