Garage Plan Ref 4560AHSRCB

4560AHSRCB
Add to cart
  • Description

4.5m x 6m Garage Plan with a Hipped roof - Rendered walls and Brick Corner Stones


4.95m x 6.45m Externally
27m² Ground Floor Area
9" wall construction
Single side door and window
7' x 7' Up and Over Garage Door
Traditional rafter roof construction

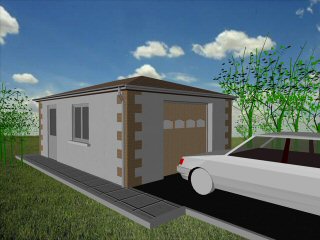

17.5° roof pitch : Ridge Height = 3.5m

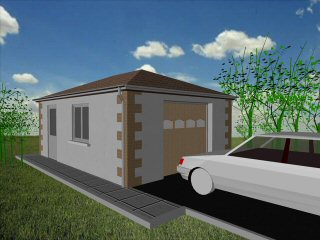

22.5° roof pitch : Ridge Height = 3.7m

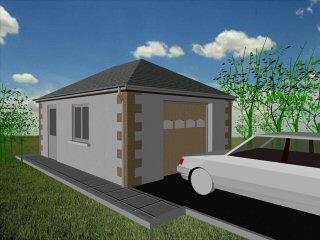

30° roof pitch : Ridge Height = 4.1m

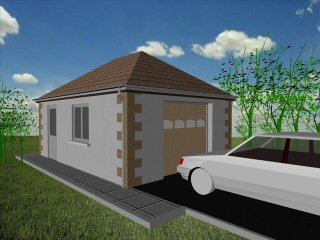

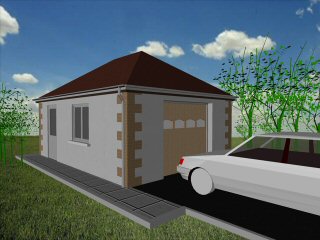

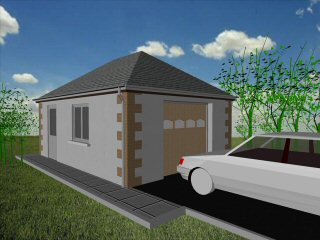

35° roof pitch : Ridge Height = 4.5m

This spacious domestic single car garage is ideal for parking the car. With a wider interior than the standard garage more room is available to open the car doors or moving around the car. The garage is wide enough to allow the DIY handyman to work around the car. Constructed with 9 inch walls all round to give better weather protection. Ideal for the wider site that has a shorter depth.
