Garage Design 4090ALSB

Slide show
  • Description
  • More Details

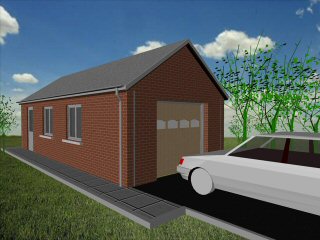

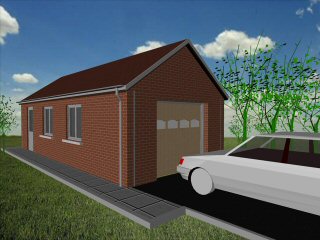

4m x 9m Garage Design with a Pitch roof - Brick walls




4.45m x 9.45m Externally
36m² Ground Floor Area
9" wall construction
Single side door and two side windows
7' x 7' Up and Over Garage Door
Traditional rafter roof construction

17.5º roof pitch : Eaves Height = 2.5m & Ridge Height = 3.4m

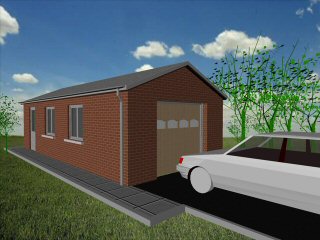

22.5º roof pitch : Eaves Height = 2.5m & Ridge Height = 3.6m

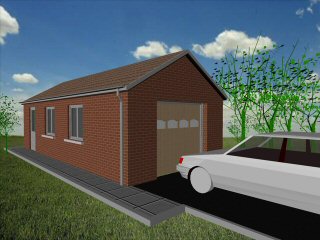

30º roof pitch : Eaves Height = 2.5m & Ridge Height = 4m
35º roof pitch : Eaves Height = 2.5m & Ridge Height = 4.3m

This spacious domestic single car garage is ideal for parking the family car. With a wider interior and longer length than the standard garage more room is available to open the car doors or moving around the car and allows for additional storage or workshop space. Constructed with 9 inch walls all round to give better weather protection. This garage is suitable for the slightly wider and longer building sites.
