Garage Plan Ref 3050AHSBCR

3050AHSBCR
Add to cart
  • Description

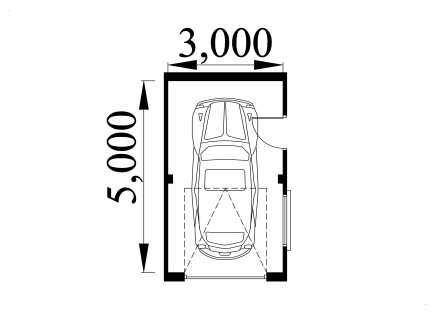

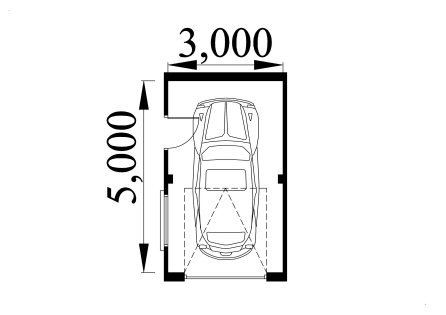

3m x 5m Garage Plan with a Hipped roof - Brick walls and Rendered Corner Stones


3.2m x 5.45m Externally
15m² Ground Floor Area
4" side walls and 9" end walls
Single side door and window
7' x 7' Up and Over Garage Door
Traditional rafter roof construction


17.5° roof pitch : Ridge Height = 3.2m
22.5° roof pitch : Ridge Height = 3.4m
30° roof pitch : Ridge Height = 3.6m
35° roof pitch : Ridge Height = 3.8m

This domestic single car garage is ideal for parking the car. Usually this size of garage is located within the driveways or rear gardens of dwellings within towns and city suburbs where the building area is restricted. This is the most basic type of garage available and is constructed in 4 inch side walls to keep construction costs to a minimum.

WARNING!!! This is the smallest length of garage available. It will be adequate for most saloon type cars but will NOT be long enough for the larger type cars. If you have the building space available please select the 6m long garage. Check the length of your car here. car sizes
