Garage Plan Ref 9050BHSBCB

9050BHSBCB
Add to cart
  • Description

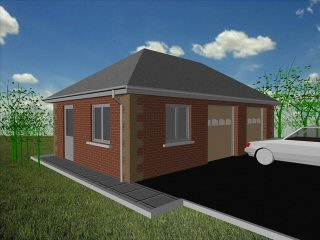

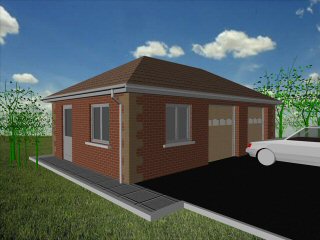

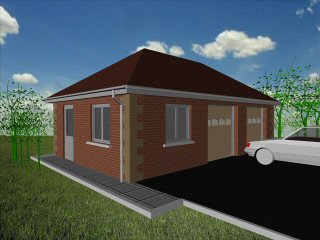

9m x 5m Garage Plan with a Hipped roof - Brick walls and Brick Corner Stones- style B


9.6m x 5.6m Externally
45m² Ground Floor Area
12" Cavity wall construction
Single side door and window
2No 6'-6" x 6'-6" Up and Over Garage Doors and front window
Truss rafter roof construction

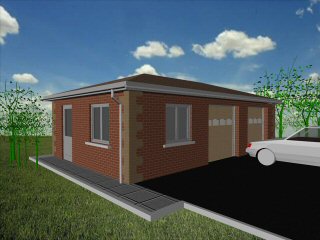

17.5° roof pitch : Ridge Height = 3.6m

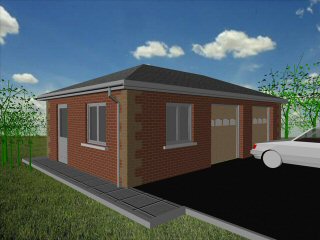

22.5° roof pitch : Ridge Height = 3.9m

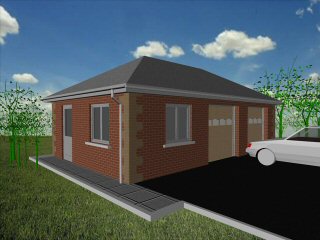

30° roof pitch : Ridge Height = 4.3m
35° roof pitch : Ridge Height = 4.7m

WARNING!!! This is the smallest length of garage available. It will be adequate for most saloon type cars but will NOT be long enough for the larger type cars. If you have the building space available please select the 6m long garage. Check the length of your car here. car sizes
