8m x 8m
>
Single Storey 8080B
>
Garage Plan Ref 8080BLSR
Garage Plan Ref 8080BLSR
Garage Plan Ref 8080BLSR
8080BLSRCN
Roof Pitch and Finish
*
17.5° pitch roof - Concrete Interlocking Tiles

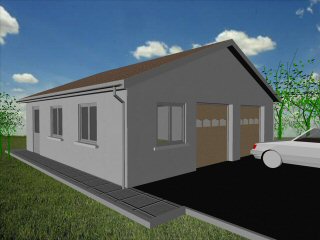

22.5° pitch roof - Concrete Interlocking Tiles

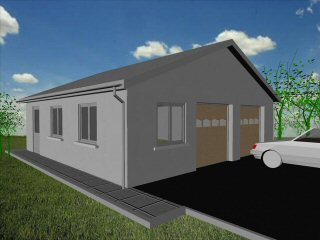

22.5° pitch roof - Mineral Fibre Slates
22.5° pitch roof - Natural Slates

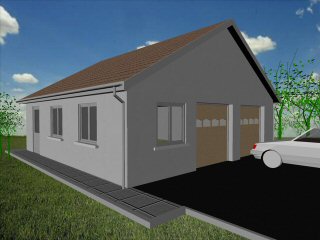

30° pitch roof - Concrete Interlocking Tiles

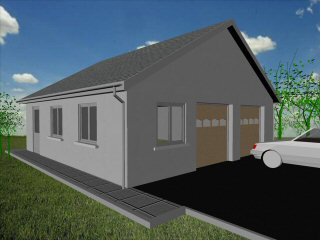

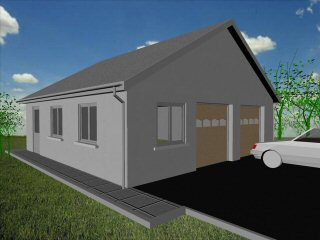

30° pitch roof - Mineral Fibre Slates
30° pitch roof - Natural Slates
35° pitch roof - Concrete Interlocking Tiles

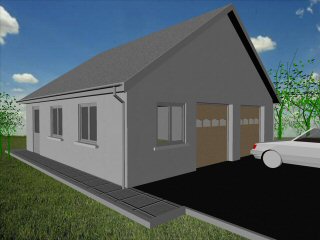

35° pitch roof - Mineral Fibre Slates

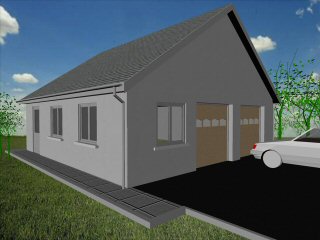

35° pitch roof - Natural Slates

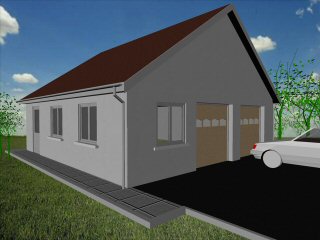

35° pitch roof - Clay/Concrete Plain Tiles
Garage to be Mirrored
*
Not Mirrored
Mirrored
Drawing Package
*
By Email - pdf
pdf & 5 printed sets by Post
(
£25.00
)
Add to cart
Description
8m x 8m Garage Plan with a Pitch roof - Rendered walls Gable Fronted Roof- style B
8.6m x 8.6m Externally
64m² Ground Floor Area
12" Cavity wall construction
Single side door and two side windows
2No 6'-6" x 6'-6" Up and Over Garage Doors and front window
Truss rafter roof construction
17.5° roof pitch : Ridge Height = 4.1m
22.5° roof pitch : Ridge Height = 4.5m
30° roof pitch : Ridge Height = 5.2m
35° roof pitch : Ridge Height = 5.7m
!
