8m x 7m
>
Single Storey 8070A
>
Garage Plan Ref 8070AHSBCR
Garage Plan Ref 8070AHSBCR
Garage Plan Ref 8070AHSBCR
8070AHSBCR
Roof Pitch and Finish
*

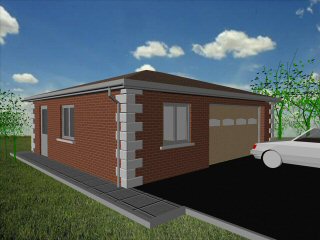

17.5° pitch roof - Concrete Interlocking Tiles
22.5° pitch roof - Concrete Interlocking Tiles

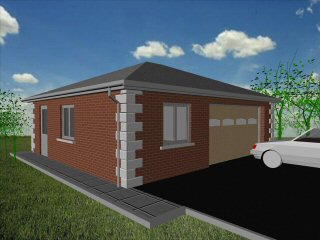

22.5° pitch roof - Mineral Fibre Slates

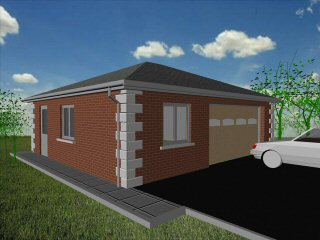

22.5° pitch roof - Natural Slates

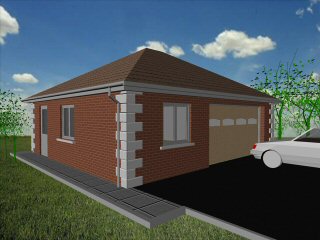

30° pitch roof - Concrete Interlocking Tiles
30° pitch roof - Mineral Fibre Slates
30° pitch roof - Natural Slates
35° pitch roof - Concrete Interlocking Tiles

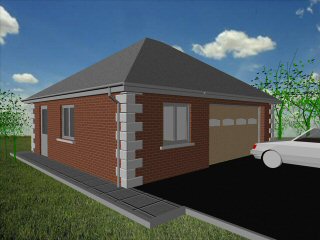

35° pitch roof - Mineral Fibre Slates

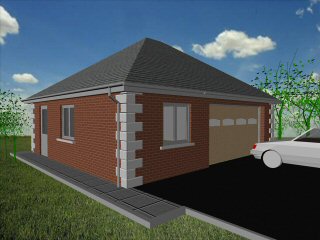

35° pitch roof - Natural Slates

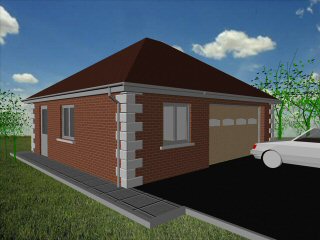

35° pitch roof - Clay/Concrete Plain Tiles
Garage to be Mirrored
*
Not Mirrored
Mirrored
Drawing Package
*
By Email - pdf
pdf & 5 printed sets by Post
(
£25.00
)
Add to cart
Description
8m x 7m Garage Plan with a Hipped roof - Brick walls and Rendered Corner Stones
8.6m x 7.6m Externally
56m² Ground Floor Area
12" Cavity wall construction
Single side door and window
9' x 7' Up and Over Garage Door and front window
Truss rafter roof construction
17.5° roof pitch : Ridge Height = 3.9m
22.5° roof pitch : Ridge Height = 4.3m
30° roof pitch : Ridge Height = 4.9m
35° roof pitch : Ridge Height = 5.4m
!
