Garage Design 6090CLSRCB

Add to cart
  • Description
  • More

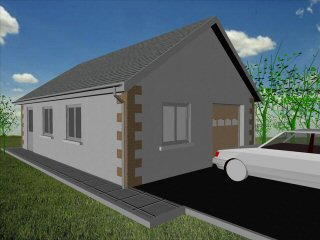

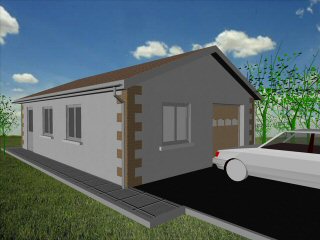

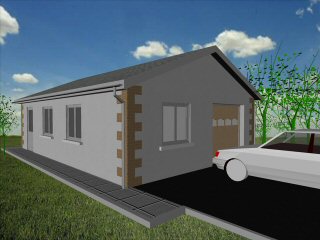

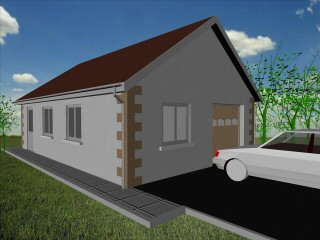

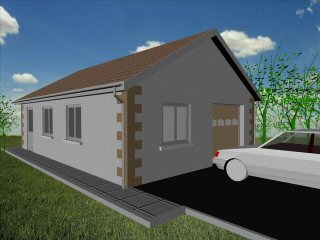

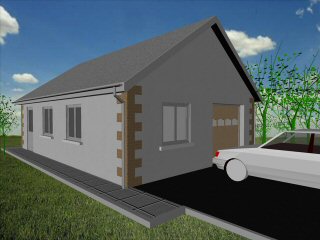

6m x 9m Garage Design with a Pitch roof - Rendered walls and Brick Corner Stones

6.6m x 9.6m Externally
54m² Ground Floor Area
12" Cavity wall construction
Single side door and two side windows
7' x 7' Up and Over Garage Door and front window
Truss rafter roof construction

17.5º roof pitch : Eaves Height = 2.4m & Ridge Height = 3.8m
22.5º roof pitch : Eaves Height = 2.4m & Ridge Height = 4.1m
30º roof pitch : Eaves Height = 2.35m & Ridge Height = 4.6m
35º roof pitch : Eaves Height = 2.4m & Ridge Height = 5m

This domestic two car workshop garage is ideal for parking the family car. Extra space is provided to allow a workshop area to be formed at the side of the car parking space. If a workshop is not required then the space can be used for storage or parking a motorbike. The additional window on the front elevation is supplied to provide extra natural light into the garage. The 7 feet wide garage door allows easy access to the garage. The extra length of the garage allows for extra workspace at the rear of the garage. The cavity wall construction provides water proof construction.
