Garage Design 50100ALSB

50100ALSBCN
Add to cart
  • Description
  • More

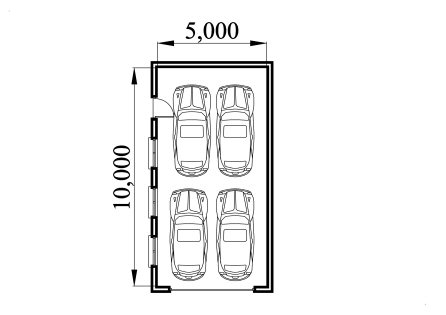

5m x 10m Garage Design with a Pitch roof - Brick walls




5.6m x 10.6m Externally
50m² Ground Floor Area
12" Cavity wall construction
Single side door and three side windows
9' X 7' Up and Over Garage Door
Truss rafter roof construction

17.5º roof pitch : Eaves Height = 2.4m & Ridge Height = 3.6m

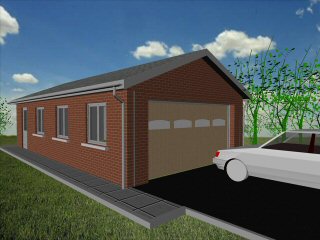

22.5º roof pitch : Eaves Height = 2.4m & Ridge Height = 3.9m

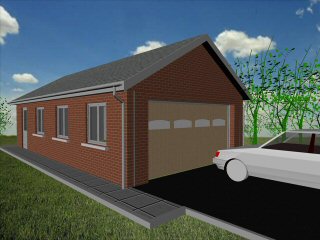

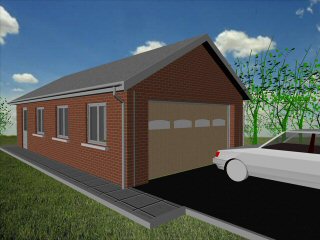

30º roof pitch : Eaves Height = 2.4m & Ridge Height = 4.3m

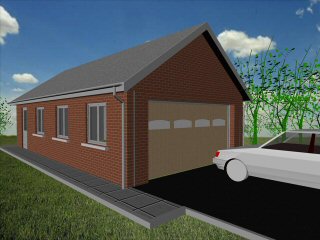

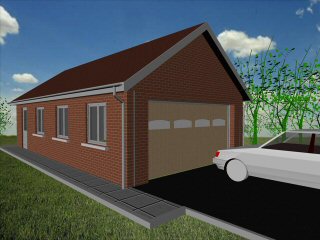

35º roof pitch : Eaves Height = 2.35m & Ridge Height = 4.7m

This domestic four car garage is ideal for parking the family cars. This is the smallest width double garage available. The width of the garage will accommodate two cars side by side. The 9 Feet wide garage door allows easy access to the garage. The cavity wall construction provides water proof construction.
