Garage Plan Ref 3570AHSRCR

3570AHSRCR
Add to cart
  • Description

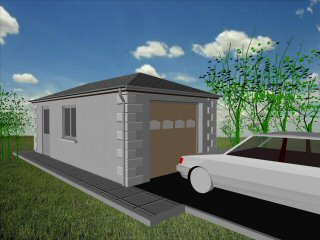

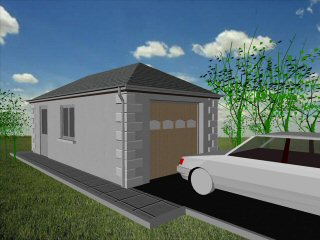

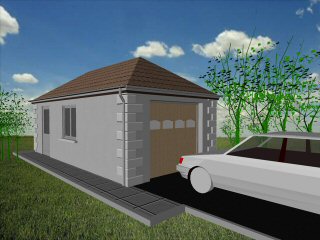

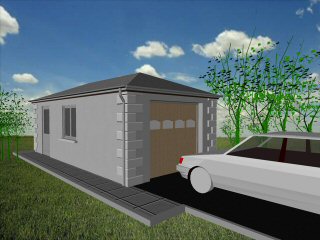

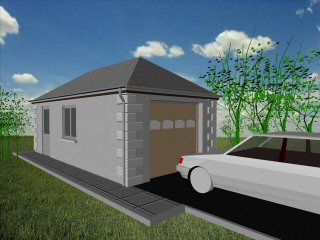

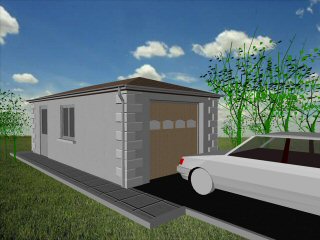

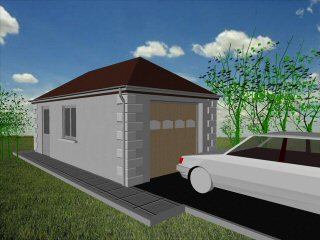

3.5m x 7m Garage Plan with a Hipped roof - Rendered walls and Rendered Corner Stones


3.7m x 7.45m Externally
24.5m² Ground Floor Area
4" side walls and 9" end walls
Single side door and window
7' x 7' Up and Over Garage Door
Traditional rafter roof construction


17.5° roof pitch : Ridge Height = 3.3m
22.5° roof pitch : Ridge Height = 3.5m
30° roof pitch : Ridge Height = 3.8m
35° roof pitch : Ridge Height = 4m

This domestic single car garage is ideal for parking the car. With a slightly wider interior than the standard garage more room is available to open the car doors or moving around the car. This is the most basic type of garage available and is constructed in 4 inch side walls to keep construction costs to a minimum.
