Garage Plan Ref 30100ALSR
Garage Plan Ref 30100ALSR
30100ALSRCN
Add to cart
Description
More
3m x 10m Garage Plan with a Pitch roof - Rendered walls Gable Fronted Roof
3.45m x 10.45m Externally
30m² Ground Floor Area
9" wall construction
Single side door and three side windows
7' x 7' Up and Over Garage Door
Traditional rafter roof construction
17.5° roof pitch : Ridge Height = 3.3m
22.5° roof pitch : Ridge Height = 3.4m
30° roof pitch : Ridge Height = 3.7m
35° roof pitch : Ridge Height = 3.9m
This domestic detached garage is ideal for parking of two family cars. This garage is longer than the standard garage and allows for additional storage, workshop space, or a second car. Constructed with 9 inch walls all round to give better weather protection. This garage is suitable for narrow but long building sites.
Links to 3D Images of garage design

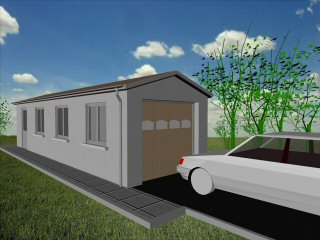

3D image of 17.5º pitch roof - Concrete Interlocking Tiles
3D image of 22.5º pitch roof - Concrete Interlocking Tiles

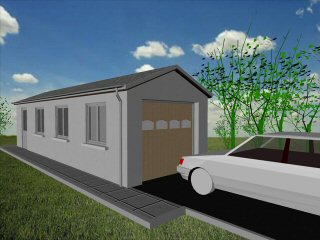

3D image of 22.5º pitch roof - Mineral Fibre Slates
3D image of 22.5º pitch roof - Natural Slates
3D image of 30º pitch roof - Concrete Interlocking Tiles
3D image of 30º pitch roof - Mineral Fibre Slates
3D image of 30º pitch roof - Natural Slates

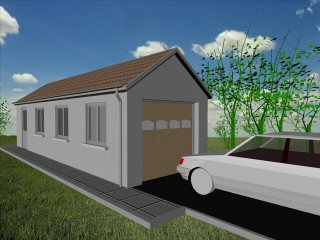

3D image of 35º pitch roof - Concrete Interlocking Tiles
3D image of 35º pitch roof - Mineral Fibre Slates
3D image of 35º pitch roof - Natural Slates

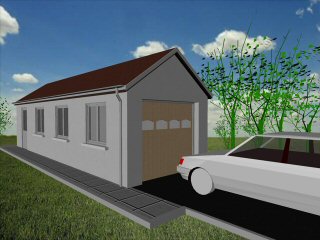

3D image of 35º pitch roof - Clay/Concrete Plain Tiles
!
