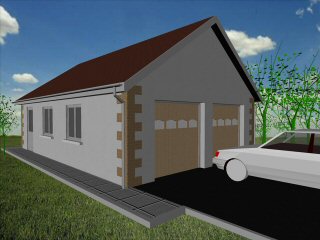

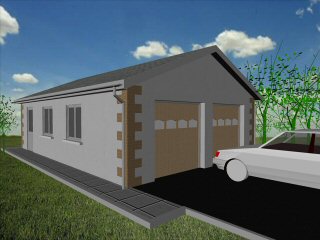

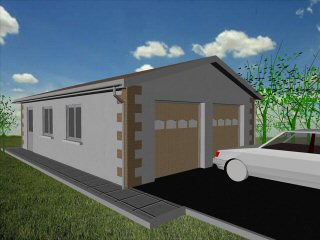

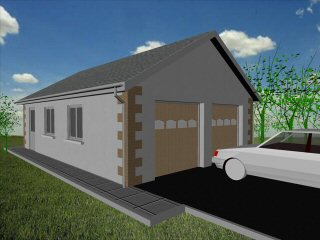

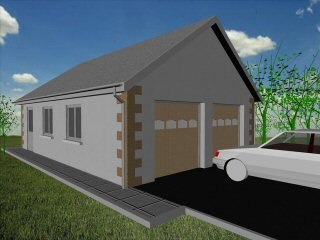

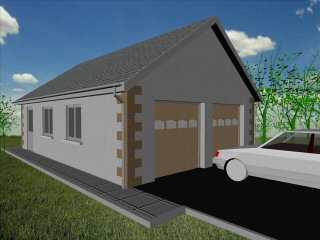

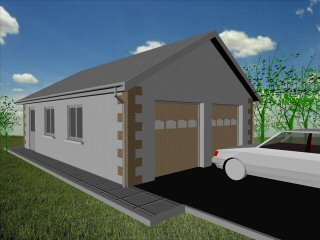

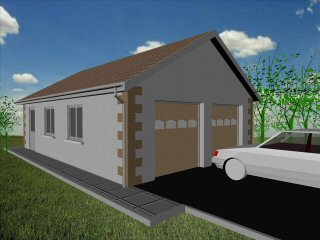

17.5° roof pitch : Ridge Height = 3.8m22.5° roof pitch : Ridge Height = 4.1m30° roof pitch : Ridge Height = 4.6m35° roof pitch : Ridge Height = 5m
6.6m x 9.6m Externally
54m² Ground Floor Area
12" Cavity wall construction
Single side door and two side windows
2No 6' 6" x 7' Up and Over Garage Doors
Truss rafter roof construction
This domestic three car garage is ideal for parking the family cars. The width of the garage will accommodate two cars side by side. The extra length provided allows for a workbench or storage area at the rear of the garage. The two 6 feet 6 inch wide garage doors allow individual access to the garage for each car. The cavity wall construction provides water proof construction.
