Garage Design 6050BHSBCB

Add to cart
  • Description
  • More

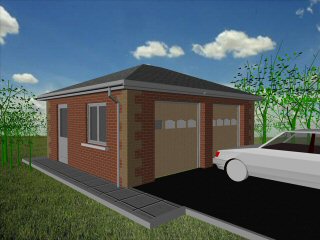

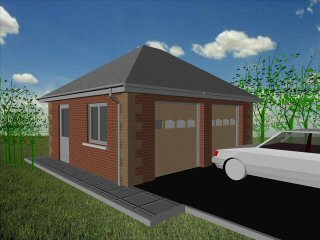

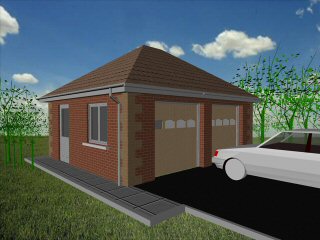

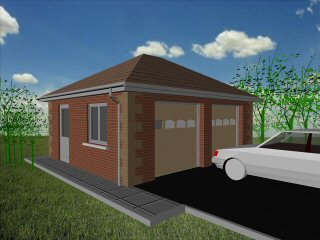

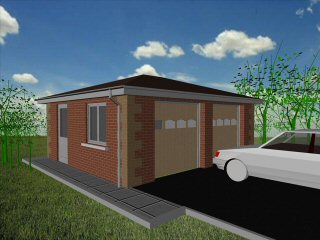

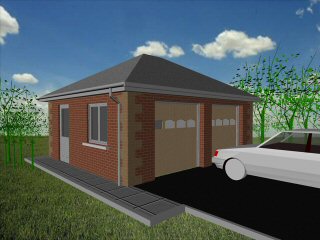

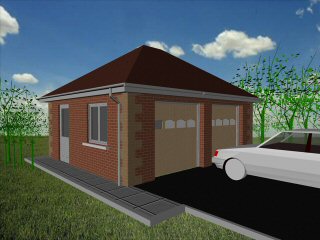

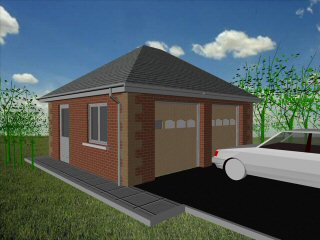

6m x 5m Garage Design with a Hipped roof - Brick walls and Brick Corner Stones

6.6m x 5.6m Externally
30m² Ground Floor Area
12" Cavity wall construction
Single side door and window
2No 7' x 7' Up and Over Garage Doors
Truss rafter roof construction

17.5º roof pitch : Eaves Height = 2.4m & Ridge Height = 3.6m
22.5º roof pitch : Eaves Height = 2.4m & Ridge Height = 3.9m
30º roof pitch : Eaves Height = 2.4m & Ridge Height = 4.3m
35º roof pitch : Eaves Height = 2.35m & Ridge Height = 4.7m

This domestic double car garage is ideal for parking the family cars. This is the smallest width double garage available. The width of the garage will accommodate two cars side by side. The two 7 feet wide garage doors allow individual access to the garage for each car. The cavity wall construction provides water proof construction.

WARNING!!! This is the smallest length of garage available. It will be adequate for most saloon type cars but will NOT be long enough for the larger type cars. If you have the building space available please select the 6m long garage. Check the length of your car here. car sizes
