3m x 9m
>
Garage Plan Ref 3090ALSR
Garage Plan Ref 3090ALSR
Garage Plan Ref 3090ALSR
3090ALSRCN
Add to cart
Description
More
3m x 9m Garage Plan with a Pitch roof - Rendered walls Gable Fronted Roof
3.2m x 9.45m Externally
27m² Ground Floor Area
4" side walls and 9" end walls
Single side door and two side windows
7' x 7' Up and Over Garage Door
Traditional rafter roof construction
17.5° roof pitch : Ridge Height = 3.2m
22.5° roof pitch : Ridge Height = 3.4m
30° roof pitch : Ridge Height = 3.6m
35° roof pitch : Ridge Height = 3.8m
This domestic detached garage is ideal for parking the family car or two small cars. This garage is longer than the standard garage and allows for additional storage or workshop space to the rear of the garage. Constructed with 4 inch side walls to save on construction costs. This garage is suitable for narrow but long building sites.
Links to 3D Images of garage design

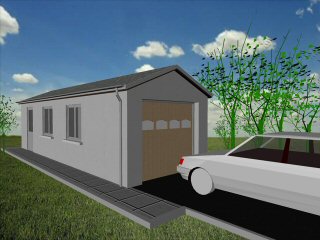

3D image of 17.5º pitch roof - Concrete Interlocking Tiles
3D image of 22.5º pitch roof - Concrete Interlocking Tiles
3D image of 22.5º pitch roof - Mineral Fibre Slates
3D image of 22.5º pitch roof - Natural Slates

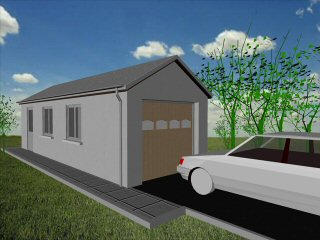

3D image of 30º pitch roof - Concrete Interlocking Tiles
3D image of 30º pitch roof - Mineral Fibre Slates
3D image of 30º pitch roof - Natural Slates
3D image of 35º pitch roof - Concrete Interlocking Tiles
3D image of 35º pitch roof - Mineral Fibre Slates
3D image of 35º pitch roof - Natural Slates

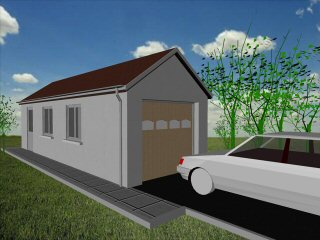

3D image of 35º pitch roof - Clay/Concrete Plain Tiles
!
